HOSE-REELS FOR HIGH PRESSURE
MANUAL

 Catalogo
Hose-reels
for high pressure
catalogue
Manual hose-reels, painted or stainless-steel, with fixed support

Supplied without hose, upon request can be delivered and installed the hose required

  • Working pressure from 30 up to 350 BAR depending on models (up to 660 BAR upon request)
  • Frame in polyester powder coated steel UV resistant or AISI 304 stainless steel
  • Hose-guide, clutch, reel-locking system and rotating handgrips standard or optional depending on models
  • In and Out connections from min. 3/8" up to 1"1/2 max (up to 3” upon request)
  • Straight or 90° swivel joints in brass or steel suitable for passage of all kinds of fluids, air and steams
  • In conformity with EC rules
  • Ability to custom design
  • Made in Italy Made in Italy



Hose-reels suitable for passage of liquids, steams and air used in garages, industries, washing fittings, irrigation systems and fire extinguishers. The AISI 304 stainless steel models are also used in food and maritime industry.

Modello: MAGNUM MINI
Max Pressure: 250 - 350 BAR
Reccomended hose 20 mt - Ø 3/8
Type: Fixed manual hose-reel, painted or in stainless steel

Scheda Tecnica Datasheet
MAGNUM MINI		 Modello 3D 3D Model
  MAGNUM MINI
ITA: montaggio tubo facilitato <br> ENG: easily installable hose ITA: Impugnatura girevole <br /> ENG: Rotating handgrips

Modello: MAGNUM BABY 2000
Max Pressure: 250 - 350 BAR
Reccomended hose 40 mt - Ø 3/8
Type: Fixed manual hose-reel, painted or in stainless steel

Scheda Tecnica Datasheet
MAGNUM BABY 2000		 Modello 3D 3D Model   Nuova versione New
version
  MAGNUM BABY 2000
ITA: montaggio tubo facilitato <br> ENG: easily installable hose ITA: Impugnatura girevole<br /> ENG: Rotating handgrips

Modello: MAGNUM 1000
Max Pressure: 10 - 250 BAR
Reccomended hose 70 / 110 mt - Ø 3/8
50 mt - Ø 1/2
25 / 50 mt - Ø 3/4
Type: Fixed manual hose-reel, painted

Scheda Tecnica Datasheet
MAGNUM 1000		 Modello 3D 3D Model
  MAGNUM 1000
ITA: montaggio tubo facilitato <br> ENG: easily installable hose ITA: supporto <br> ENG: support
ITA: bloccaggio rullo (optional) <br> ENG: reel stop (optional) ITA: Impugnatura girevole <br /> ENG: Rotating handgrips

Modello: MAGNUM 2000
Max Pressure: 250 - 350 BAR
Reccomended hose 70 / 110 / 160 / 200 mt - Ø 3/8
50 / 90 / 120 / 150 mt - Ø 1/2
Type: Fixed manual hose-reel, painted or in stainless steel

Scheda Tecnica Datasheet
MAGNUM 2000		 Modello 3D 3D Model   Nuova versione New
version
  MAGNUM 2000
ITA: montaggio tubo facilitato <br> ENG: easily installable hose ITA: bloccaggio rullo (optional) <br> ENG: reel stop (optional)
ITA: Impugnatura girevole <br /> ENG: Rotating handgrips

Modello: MAGNUM 2000 1''
Max Pressure: 30 - 250 BAR
Reccomended hose 20 / 30 mt - Ø 1''
Type: Fixed manual hose-reel, painted or in stainless steel

Scheda Tecnica Datasheet
MAGNUM 2000 1''		 Modello 3D 3D Model
  MAGNUM 2000 1''
ITA: montaggio tubo facilitato <br> ENG: easily installable hose ITA: bloccaggio rullo (optional) <br> ENG: reel stop (optional)
ITA: Impugnatura girevole <br /> ENG: Rotating handgrips




Hose-reels suitable for the passage of liquids, steams and air used in garages, industries, washing fittings, irrigation systems and fire extinguishers.

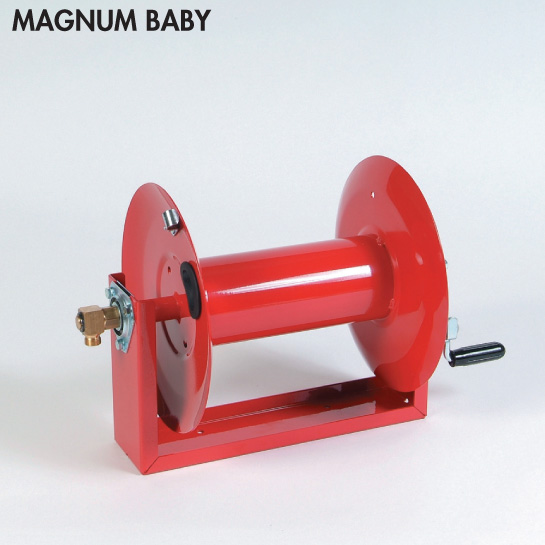

Modello: MAGNUM BABY
Max Pressure: 250 BAR
Reccomended hose 40 mt - Ø 3/8
Type: Fixed manual hose-reel, painted

Scheda Tecnica Datasheet
MAGNUM BABY		 Modello 3D 3D Model
  MAGNUM BABY
ITA: bloccaggio rullo (di serie)<br> ENG: reel stop (standard) ITA: frizione (optional) <br> ENG: clutch (optional)
ITA: Impugnatura girevole <br /> ENG: Rotating handgrips ITA: protezione giunto (optional) <br> ENG: joint protection (optional)

Modello: MAGNUM
Max Pressure: 250 BAR
Reccomended hose 70 / 110 / 160 / 200 mt - Ø 3/8
Type: Fixed manual hose-reel, painted

Scheda Tecnica Datasheet
MAGNUM		 Modello 3D 3D Model
  MAGNUM
ITA: bloccaggio rullo <br> ENG: reel stop ITA: frizione (optional) <br> ENG: clutch (optional)
ITA: protezione giunto (optional) <br> ENG: joint protection (optional) ITA: guidatubo (optional) <br /> ENG: hose-guide (optional)
ITA: Impugnatura girevole <br /> ENG: Rotating handgrips

Modello: MAGNUM GOLIA BABY - MAGNUM GOLIA
Max Pressure: 200 - 250 BAR
Reccomended hose 230 mt - Ø 1/2
80 / 140 mt - Ø 3/4
50 / 80 mt - Ø 1''
35 mt - Ø 1'' 1/2
Type: Fixed manual hose-reel, painted

Scheda Tecnica Datasheet
MAGNUM GOLIA BABY - MAGNUM GOLIA		 Modello 3D 3D Model
  MAGNUM GOLIA BABY - MAGNUM GOLIA
ITA: raccordo in uscita <br> ENG: end connection ITA: giunto con cuscinetto <br> ENG: joint with bearing
ITA: guidatubo (optional) <br> ENG: hose-guide (optional) ITA: bloccaggio rullo (di serie) <br> ENG: reel stop (standard)
ITA: Proteggi dischi (optional) ENG: Protect disks (optional) ITA: Impugnatura girevole <br /> ENG: Rotating handgrips
